1 - Intake
2 - Compression
3 - Power
4 - Exhaust

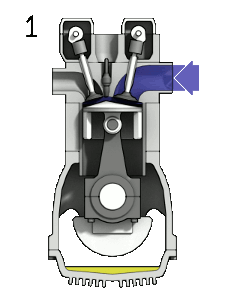

The right blue side is the intake
and the left brown side is the exhaust.
The cylinder wall is a thin sleeve surrounded by cooling liquid.
| Four Stroke Engine | ||
|
||
|
||
| Four-stroke cycle used in most gasoline engines. 1 - Intake 2 - Compression 3 - Power 4 - Exhaust The right blue side is the intake and the left brown side is the exhaust. The cylinder wall is a thin sleeve surrounded by cooling liquid. |
||
